1 x e5000
2 x e5000
3 x e5000
4 x e5000
Total Energy Capacity [kWh]
Energy, 80% DoD [kWh] 1
Energy, 90% DoD [kWh] 1
Current Capacity [Ah]
Max & Cont. Charge Current [A] 2
Max & Cont. Charge Power [kW] 2
Max/Cont. Discharge Current [A] 2
Max/Cont. Discharge Power [kW] 2
Max Recommended Inverter Total Rated Power (cont.) [kVA]
Nominal Voltage [V]
52V, to suit 48V Inverters, min 47V, max 56V
*do not connect modules in series – (for high voltage batteries, refer to Freedom Won LiTE HV ranges)
Combined weight [kg]

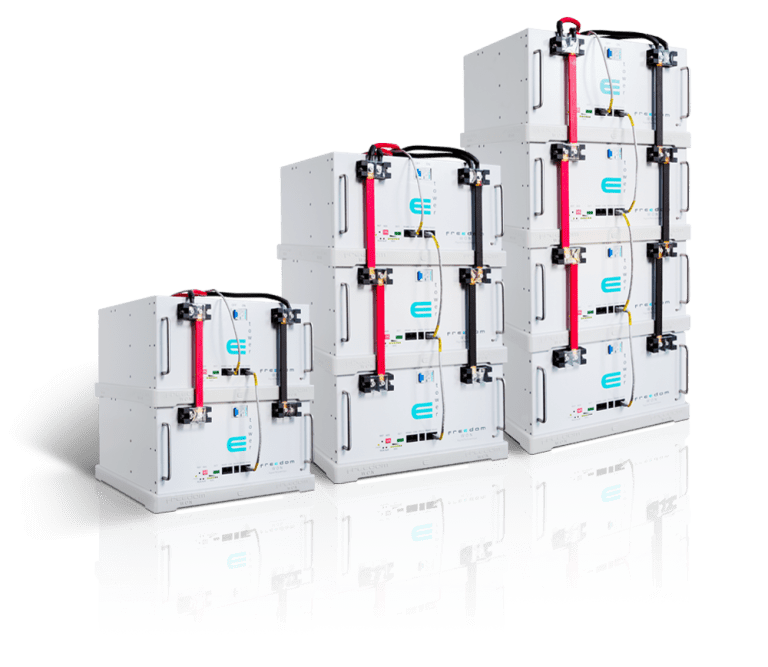

Stacked horizontally onto each other to form a tower with pedestals included, (one per module) or 19 inch rack mounted with brackets (cabinet excluded). Vertical mounting on ﬂoor or wall (shelf/bracket) with terminals facing upwards also acceptable. Generally up to 4 x e5000’s per system (for larger capacity requirements, see Freedom Won LiTE ranges)
Dimensions when e5000 placed horizontally: Height x Width x Depth (Front to rear) (mm)
Single unit with pedestal: 247 x 460 x 463
2 module tower with pedestals: 479 x 460 x 463
3 module tower with pedestals: 711 x 460 x 463
4 module tower with pedestals: 943 x 460 x 463
Dimensions exclude busbars on front
Single unit without pedestal: 222x440x443
Module height equates to 5U (U = standard 19” rack unit)
1 x 35mm
1 x 35mm
2 x 35mm
2 x 35mm
Steel – painted white, rated for indoor use only, out of direct sun and away from other heat sources.
DC Connection – Integrated Terminals on Front
2 x M6 bolts each for positive and for negative terminals for DC leads to inverter and busbars for connection of parallel e5000’s in tower or rack conﬁguration.
70 (17mm x 4mm busbar available in accessories)
*note that the Freedom Won busbar accessories are designed for the pedestal tower dimensions not for 19” rack mounting, which has different spacing.
Communication and Control Interfaces (See manual for further details)
Internal electronic protection including overcurrent, cell under and over voltage, temperature out of range, weak cell detection, minimum SOC control, active voltage based charge current limiting.
*do not short circuit or connect in reverse polarity!
10 years limited warranty
Design Life 4
One e5000 per cardboard box complete with above included accessories.
Certificate of Compliance
UN 38.3 / IEC 62619
Notes to the specifications
